Answer: 0.03 N/C
Explanation:
We use the current density formula to solve this question.
I/A = σ * E
Where,
I = current flowing in the circuit = 0.3 A
A = cross sectional area of the wire = 1 mm²
σ = resistivity of the wire = 1*10^7 Ω^-1·m^-1
E = strength of the electric field required
I/A = σ *E
E = I/(A * σ)
First we convert area from mm to m, so that, 1*10^-3 mm = 1*10^-6 m
E = 0.3 A / (1*10^-6 m * 1*10^7 Ω^-1·m^-1)
E = 0.3 A / 10 Ω^-1
E = 0.03 N/C
Answer:
Making the crossing gate balanced makes the mechanical drive simpler and less expensive to operate.
Explanation:

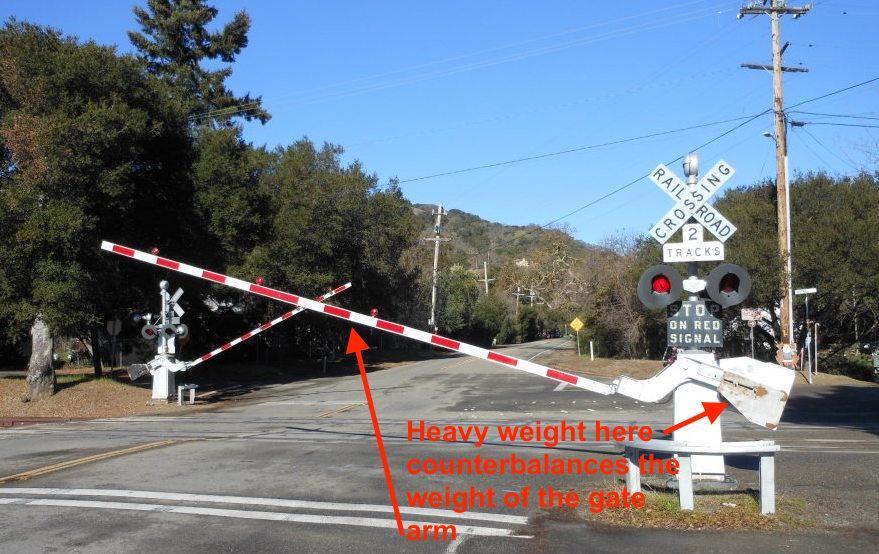

See the attachment for a picture of what we're talking about.
The gate must be rotated up and down. That rotation is easier if the mass being rotated is balanced about the center of rotation. Less torque (and work) is required to create the desired motion.
The minimum coefficient of friction to avoid slippage of the coin is 0.23.
<h3>
Minimum coefficient of friction</h3>
The minimum coefficient of friction can determined from the maximum speed of the coin.
ma = μmg
mv²/r = μmg
v²/r = μg
v² = μgr
μ = v²/(gr)
μ = (ωr)²/(gr)
μ = ω²r/g
μ = (7.95² x 0.035)/(9.8)
μ = 0.23
