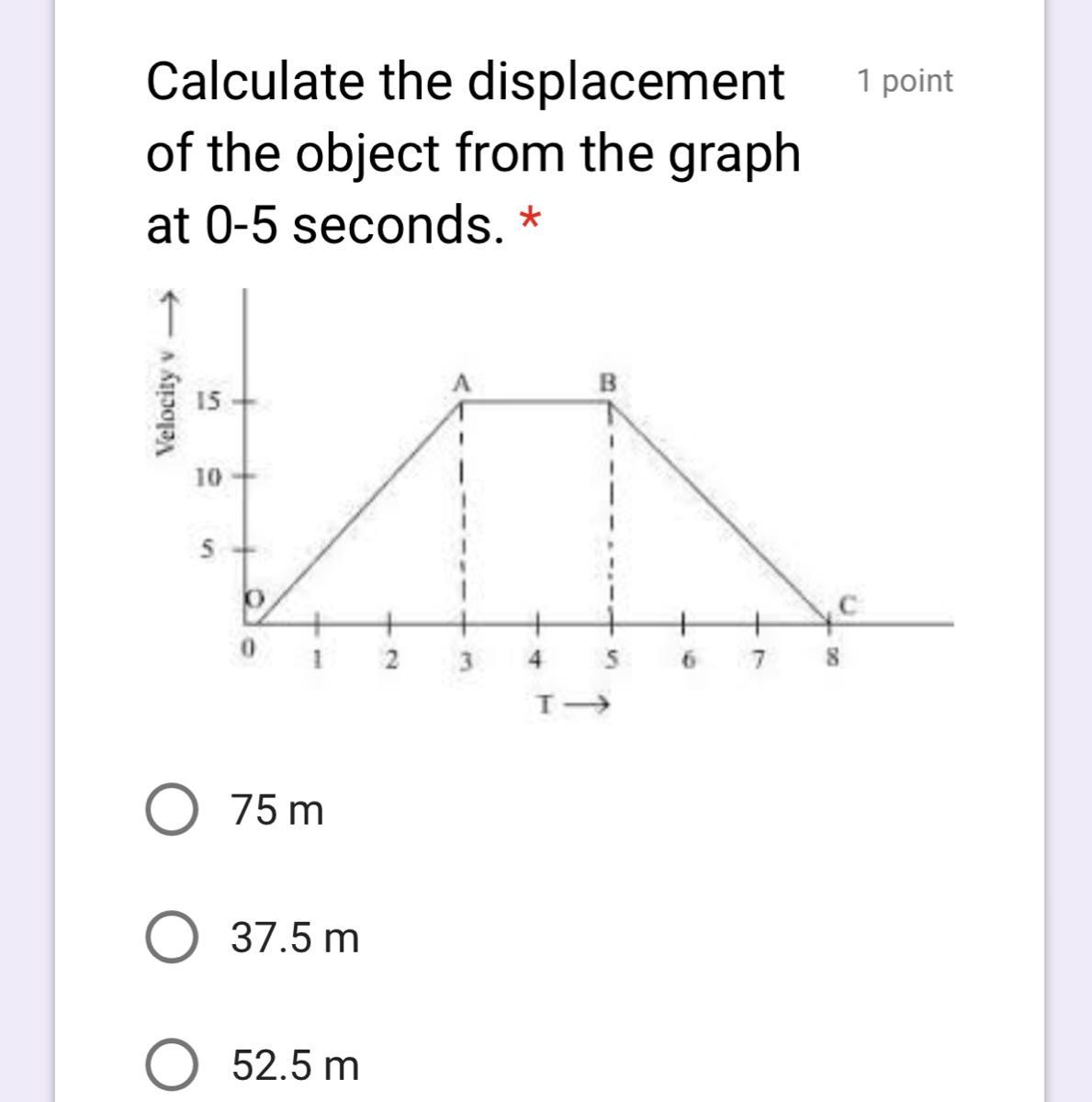

What’s the answer for this

Physics

2 answers:

AlladinOne [14]3 years ago

8 0

Answer:

52.5 m

Explanation:

The displacement is the area under the velocity vs time graph.

From 0 to 5 seconds, the area is the area of the triangle plus the area of the rectangle.

x = ½ (3 s) (15 m/s) + (2 s) (15 m/s)

x = 52.5 m

MA_775_DIABLO [31]3 years ago

3 0

52.5

Glad I could help you
