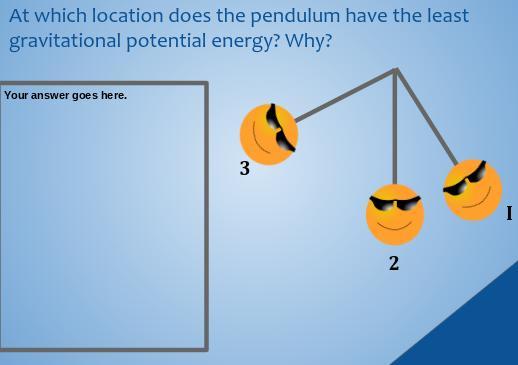

1. At which location does the pendulum have the least gravitational potential energy? Why?

1 answer:

Delicious77 [7]3 years ago

7 0

Answer:Point B

Explanation:When it is at the bottom of its swing (arm straight up and down). When it is at its lowest point, Gravity can not pull it down any further. This position also has the most kinetic energy because after it passes the bottom, it goes back up again and loses speed. so when the pendulum is at the bottom it is traveling the fastest it will go.

You might be interested in

Picture showing four cards in a row with labels 'First animal appears on land', 'First life form appears in the sea', 'First roc

sasho [114]

The answer would be 'First rocks formed on Earth'.

3 0

4 years ago

If the force on a hammer is 24 N and its mass is 1.6 kg, then the

Gnesinka [82]

Answer:

15 m/s²

Explanation:

F = ma

make "a" the subject

a = F/m

6 0

3 years ago

What is the relationship between Hectare and cubic meter<br>

kap26 [50]

Answer;

1 hectare meter is equal to 10000 cubic meter.

8 0

3 years ago

In a series RLC resonance circuit, the resonance frequency f0 = 700 kHz. The resistor R = 10 Ohm. The specified bandwidth (BW) s

sladkih [1.3K]

Answer:

quality factor (Q) = 69.99

inductor = 1.591 x 10⁻⁴ H

capacitor = 3.248 x 10⁻¹⁰ F

Explanation:

Given;

resonance frequency (F₀) = 700 kHz

resistor, R = 10 Ohm

bandwidth (BW) = 10 kHz

bandwidth (BW) $= \frac{R}{2\pi L}$

$BW = \frac{R}{2\pi L}$

make L (inductor) the subject of the formula

$L = \frac{R}{2\pi *BW} = \frac{10}{2\pi *10,000} =1.591 *10^{-4} \ H = \ 0.1591\ mH$

$F_o =\frac{1}{2\pi\sqrt{LC} } \\\\\sqrt{LC} = \frac{1}{2\pi F_o} \\\\LC = \frac{1}{4\pi ^2F_o^2}= \frac{1}{4\pi ^2(700,000)^2} = 5.168*10^{-14}$

make C (capacitor) the subject of the formula

$C = \frac{5.168*10^{-14}}{1.591*10^{-4}} = 3.248*10^{-10} \ F = \ 3.248*10^{-4} \ \mu F$

quality factor (Q) $= \frac{1}{R} \sqrt{\frac{L}{C}} \ = \frac{1}{10} \sqrt{\frac{1.591*10^{-4}}{3.248*10^{-10}}}=69.99$

quality factor (Q) = 69.99

5 0

4 years ago

If an airplane undergoes a displace-

PIT_PIT [208]

The formula for velocity is distance divided by time, or d/t. The distance is 500 km and the time is 1.2 hours. 500/1.2 is 416.6 km/hr.

4 0
