3 years ago

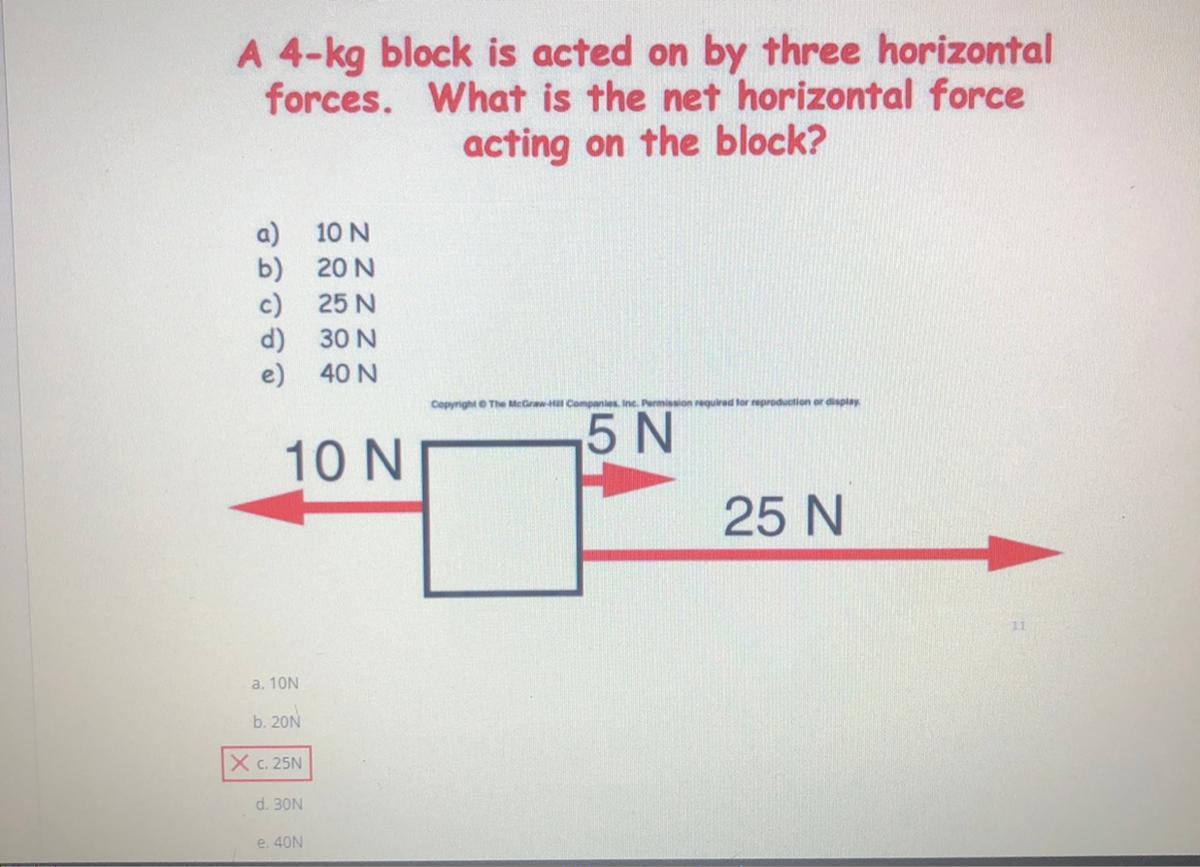

Can someone please help me I don’t understand this please show work plus I got it wrong it’s not C

1 answer:

8 0

B,
The 25 N and 5 N force are acting in the same direction so we can add them together, but the 10 N force acts in the opposite direction so you subtract it.
25 N + 5 N - 10 N = 20 N

You might be interested in

How does heat reach to us from the sun<br><br><br>

patriot [66]

Answer:

heat reaches to us from the sun through radiation since there is no medium in space, radiation is the major wat heat travels in space.

6 0

4 years ago

What is a concave lens?

ozzi

A concave lens is a lens that has at least one of its surfaces or both surfaces curved inwards. Due to this reason, this lens diverges the light that falls on it and hence is also called a diverging lens. The concave lens is thinner in the middle compared to its edges. These are used in flashlights, binoculars, telescopes, etc.
Please see attached image for reference.

5 0

3 years ago

What is 1.0 x 10^9 in standard form?

jasenka [17]

1.0 x 10^9= 1000000000

3 0

4 years ago

A short current element dl⃗ = (0.500 mm)j^ carries a current of 4.80 A in the same direction as dl⃗ . Point P is located at r⃗ =

sammy [17]

Answer:

Magnetic field in Tesla: 1.65*10^−10 T, 0, 3.09*10^−10 T

Explanation:

Given data:

i = 4.8 A ,

dBx = 1.65*10^-10 T

dBy = 0 T

dBz = 3.09 * 10^-10 T

Attached below is the detailed solution

7 0

3 years ago

The return-air ventilation duct in a home has a cross-sectional area of 900 cm^2. The air in a room that has dimensions 7.0 m ××

koban [17]

Answer:

0.86 m/s

Explanation:

A = cross-sectional area of the duct = 900 cm² = 900 x 10⁻⁴ m²

v = speed of air in the duct

t = time period of circulation = 40 min = 40 x 60 sec = 2400 sec

V = Volume of the air in the room = volume of room = 7 x 11 x 2.4 = 184.8 m³

Volume of air in the room is given as

V = A v t

inserting the values

184.8 = (900 x 10⁻⁴) (2400) v

v = 0.86 m/s

6 0
