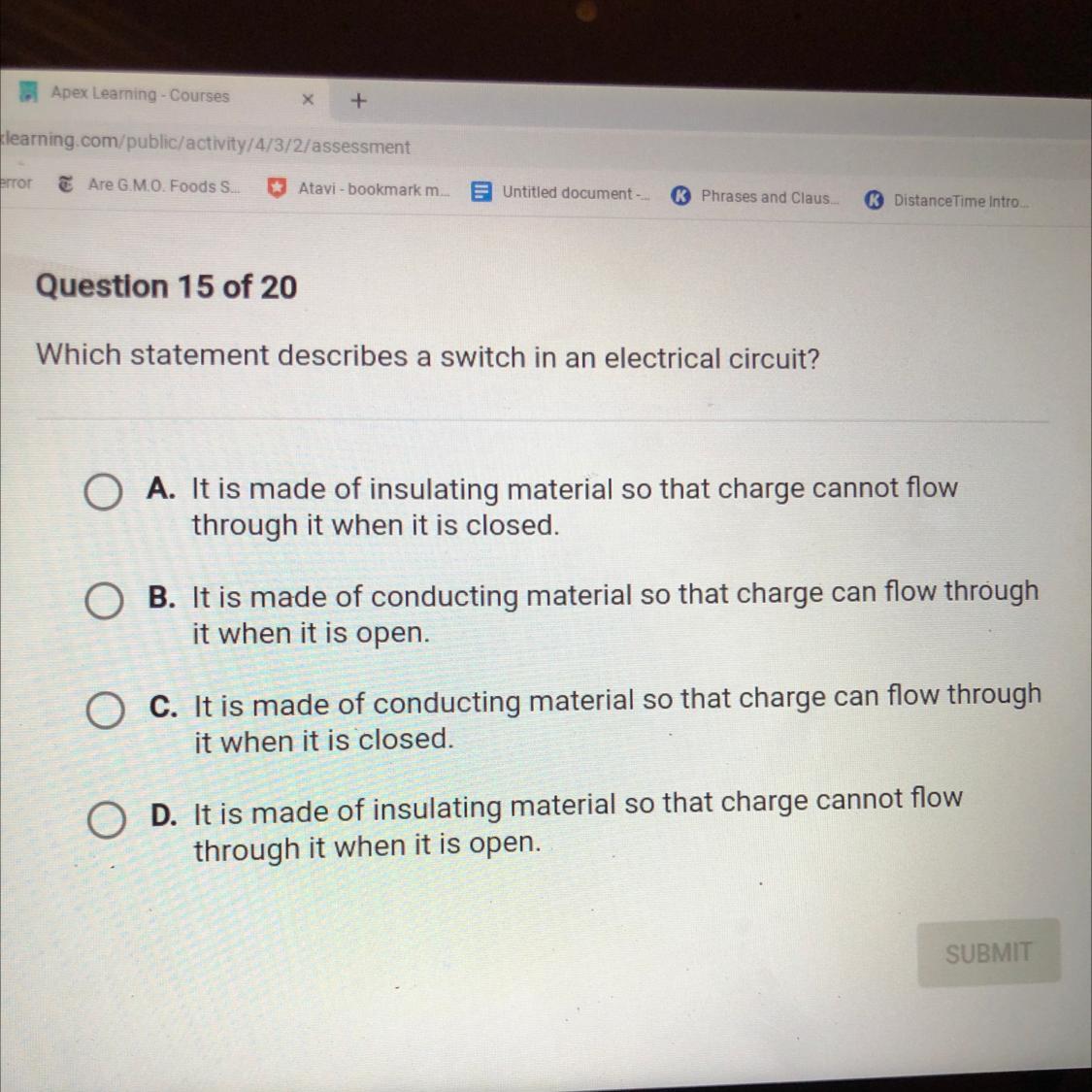

SOMEONE PLEASE PLEASE HELP QUICK PICTURE INCLUDED

Physics

1 answer:

GaryK [48]4 years ago

6 0

Answer:

Explanation:

Switches are used to block electrical currents, thus needing to be made out of insulating material.

You might be interested in

Define the relationship between refraction and reflection

ElenaW [278]

Reflection and refraction are two different phenomenons. In case of reflection, wave bounces back into the same medium after incident with the interface of two mediums. Reflection will happen if surface is shiny as well as smooth. If surface is irregular, one will get diffused reflection. Refraction means bending of light when waves travel from one medium to another

8 0

4 years ago

1-D Kinematics, Constant Acceleration After falling a distance of 45.0 m from the top of a building, a box is landing on the top

Mrrafil [7]

Answer:

Explanation:

Given

Object fall from a height of $s=45\ m$

Considering initial velocity to be zero i.e. $u=0$

using

$v^2-u^2=2as$

where v=final velocity

u=initial velocity

a=acceleration

s=displacement

$v^2-0=2(9.8)\cdot 45$

$v=29.69\ m/s\approx 29.7\ m/s$

(b)Average acceleration

After falling 45 m, object strike the car and comes to rest after covering a distance of 0.5 m

again using

$v'^2-u'^2=2as'$

here final velocity will be zero i.e. $v'=0$

initial velocity $u'=v$

$0-(29.7)^2=2\cdot a\cdot 0.5$

$a=-882.09\ m/s^2$

(c)time taken by it to stop

$v'=u'+a't$

$0=29.7-882.09\cdot t$

$t=0.034\ s$

5 0

3 years ago

Suppose you are chatting with your friend, who lives on the moon. He tells you he has just won a Newton of gold in a contest. Ex

lisabon 2012 [21]

Answer:

The friend on moon is richer.

Explanation:

The value of acceleration due to gravity changes from planet to planet. So the weight of 1 Newton of gold carries different mass on different places. So we need to calculate the mass of gold that both persons have.

FRIEND ON MOON:

W₁ = m₁g₁

where,

W₁ = Weight of Gold won by friend on moon = 1 N

m₁ = mass of gold won by friend on moon = ?

g₁ = acceleration due to gravity on moon = 1.625 m/s²

Therefore,

1 N = m₁(1.625 m/s²)

m₁ = 0.62 kg

ON EARTH:

W₂ = m₂g₂

where,

W₂ = Weight of Gold won by me on Earth = 1 N

m₂ = mass of gold won by me on Earth = ?

g₂ = acceleration due to gravity on Earth = 9.8 m/s²

Therefore,

1 N = m₁(9.8 m/s²)

m₁ = 0.1 kg

Since, the friend on moon has greater mass of gold than me.

Therefore, the friend on moon is richer.

5 0

3 years ago

What should be the spring constant k of a spring designed to bring a 1200 kg car to rest from a speed of 85 km/h so that the occ

borishaifa [10]

Answer:

k = 5178.8 N/m

Explanation:

As we know that spring mass system will oscillate at angular frequency given as

$\omega = \sqrt{\frac{k}{m}}$

now we have

$\omega = \sqrt{\frac{k}{1200}}$

now the maximum acceleration of the spring block system is at its maximum compression state which is given as

$a = \omega^2 A$

here A= maximum compression of the spring

so here in order to find maximum compression of the spring we will use energy conservation as we know that initial total kinetic energy of the car will convert into spring potential energy

$\frac{1}{2}mv^2 = \frac{1}{2}kA^2$
