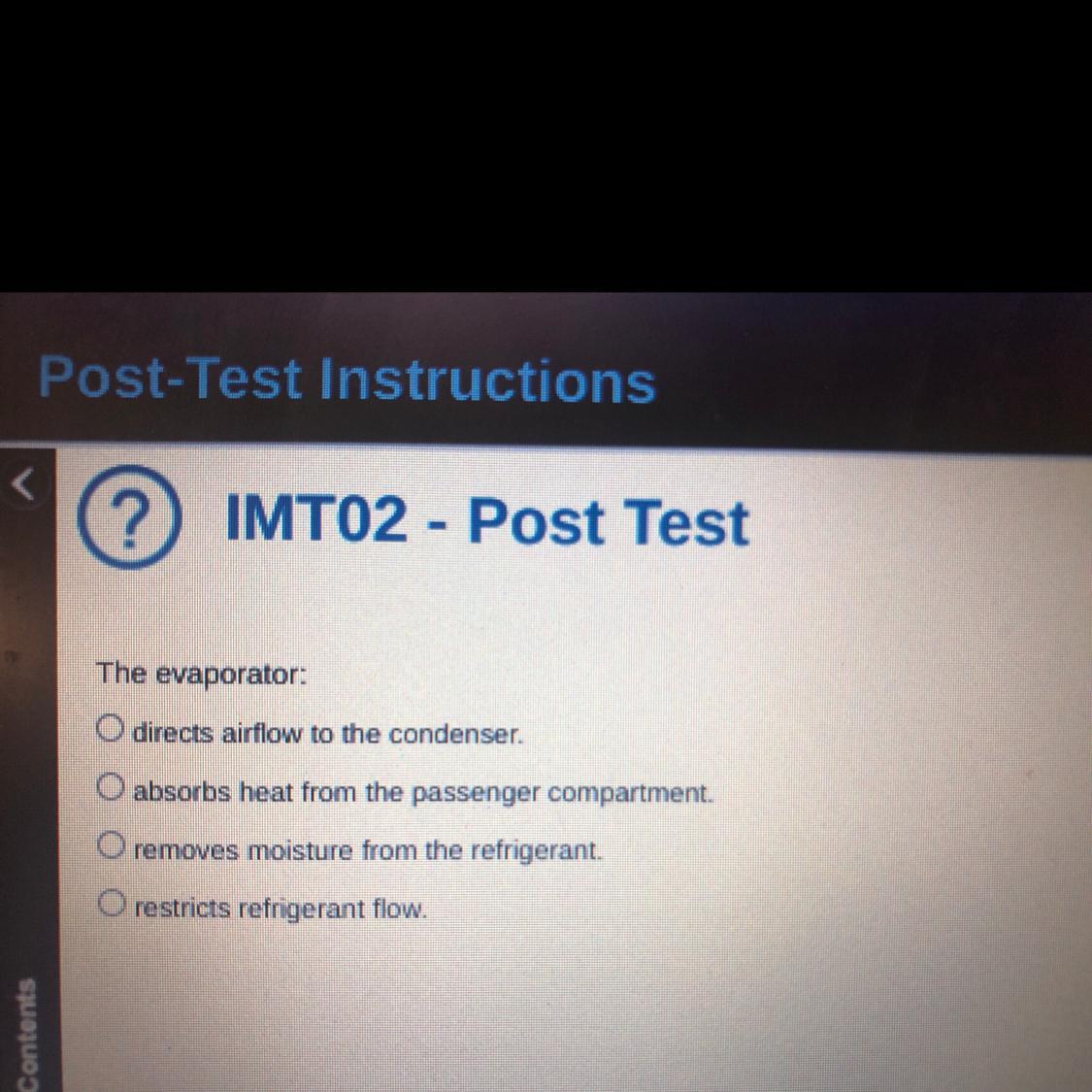

The evaporator:

Engineering

1 answer:

iris [78.8K]3 years ago

6 0

Answer:

Option B

Explanation:

An evaporator along with cold low pressure refrigerant absorbs heat from the air within the passenger compartment thereby supplying cool air for the occupants.

Hence, option B is correct

You might be interested in

A solid shaft and a hollow shaft of the same material have same length and outer radius R. The inner radius of the hollow shaft

alexandr402 [8]

Answer with Explanation:

By the equation or Torque we have

$\frac{T}{I_{p}}=\frac{\tau }{r}=\frac{G\theta }{L}$

where

T is the torque applied on the shaft

$I_{p}$ is the polar moment of inertia of the shaft

$\tau$ is the shear stress developed at a distance 'r' from the center of the shaft

$\theta$ is the angle of twist of the shaft

'G' is the modulus of rigidity of the shaft

We know that for solid shaft $I_{p}=\frac{\pi R^4}{2}$

For a hollow shaft $I_{p}=\frac{\pi (R_o^4-R_i^4)}{2}$

Since the two shafts are subjected to same torque from the relation of Torque we have

1) For solid shaft

$\frac{2T}{\pi R^4}\times r=\tau _{solid}$

2) For hollow shaft we have

$\tau _{hollow}=\frac{2T}{\pi (R^4-0.7R^4)}\times r=\frac{2T}{\pi 0.76R^4}$

Comparing the above 2 relations we see

$\frac{\tau _{solid}}{\tau _{hollow}}=0.76$

Similarly for angle of twist we can see

$\frac{\theta _{solid}}{\theta _{hollow}}=\frac{\frac{LT}{I_{solid}}}{\frac{LT}{I_{hollow}}}=\frac{I_{hollow}}{I_{solid}}=1.316$

Part b)

Strength of solid shaft = $\tau _{max}=\frac{T\times R}{I_{solid}}$

Weight of solid shaft = $\rho \times \pi R^2\times L$

Strength per unit weight of solid shaft = $\frac{\tau _{max}}{W}=\frac{T\times R}{I_{solid}}\times \frac{1}{\rho \times \pi R^2\times L}=\frac{2T}{\rho \pi ^2R^5L}$

Strength of hollow shaft = $\tau '_{max}=\frac{T\times R}{I_{hollow}}$

Weight of hollow shaft = $\rho \times \pi (R^2-0.7R^2)\times L$

Strength per unit weight of hollow shaft = $\frac{\tau _{max}}{W}=\frac{T\times R}{I_{hollow}}\times \frac{1}{\rho \times \pi (R^2-0.7^2)\times L}=\frac{5.16T}{\rho \pi ^2R^5L}$
