A ball was positioned in the middle of a smooth ramp and allowed to roll

1 answer:

Goryan [66]3 years ago

8 0

Answer:

These are all the forces acting on the ball: friction, gravity, and a normal force.

Explanation:

You might be interested in

What is the definition of a moment of force?

Varvara68 [4.7K]

Answer:

The Moment of a force is a measure of its tendency to cause a body to rotate about a specific point or axis.

5 0

3 years ago

Read 2 more answers

Suppose that two sources of sound produce waves of the same exact amplitude and frequency, but are out of phase by one-half of a

tia_tia [17]

Answer:

option D is right

........

8 0

3 years ago

Read 2 more answers

Describe how charge is transferred from the ruler to the metal rod.

spin [16.1K]

When the ruler is broughı near the inetal knob, it repels electrons in the metal. Electrons move away froni the ruler and down the metal rod. The knob now has a positive charge. The thin pieces of metal foil at the bottom of the metal rod now have a negative charge.

3 0

3 years ago

Read 2 more answers

A proposed ocean thermal-energy conversion (OTEC) system is a heat engine that would operate between warm water (25 degrees C) a

Sphinxa [80]

Answer:

$\eta=0.067$

Explanation:

Given that

Temperature of warm water ,T₁ = 25 °C

Temperature of cold water ,T₂ = 5 °C

The maximum possible efficiency of any heat is will be same as the efficiency of the Carnot heat engine.Therefore the maximum efficiency of OTEC system is given as follows

$\eta=1-\dfrac{T_2}{T_1}$

T should be Kelvin scale

Now by putting the values

$\eta =1-\dfrac{5+273}{25+273}$

$\eta=0.067$

Therefore the maximum efficiency will be 0.067 or 6.7%.

8 0

3 years ago

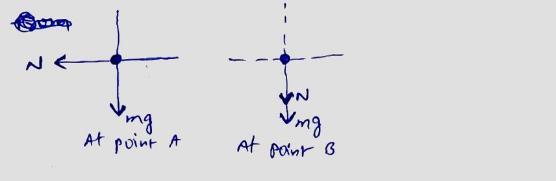

On the dots below, which represent the sphere, draw and label the forces (not components) that are exerted on the sphere at poin

Furkat [3]

Answer:

Explanation:

find attach the diagram

7 0

3 years ago
