In need help I need someone that is really good at physics

A girl delivering newspapers covers her route by traveling 3.00 blocks west, 4.00 blocks north, and then 6.00 blocks east. What

borishaifa [10]

Answer:

13 blocks

Explanation:

The total distance the student travels is 13 blocks.

Distance is the length of path covered during the motion of a body.

To find distance:

Total distance = Number of blocks to the west + number of blocks to the north + number of blocks to the east

Total distance = 3blocks + 4blocks + 6blocks = 13blocks

3 0

3 years ago

Water at 20 C flows through a 5-cm-diameter pipe that has a 180 vertical bend, as in Fig. P3.43. The total length of pipe betwee

Nataliya [291]

Answer:

F = 749 [N]

Explanation:

We must give full information on this problem, as well as the question that needs to be resolved.

Water at 20°C flows through a 5-cm-diameter pipe that has a 180° vertical bend. The total length of pipe between flanges 1 and 2 is 75 cm. When the weight flow rate is 230 N/s,

P1=165kPa

and

P2=134kPa

Neglecting pipe weight, determine the total force that the flanges must withstand for this flow.

We must make a U-shaped body diagram of the pipe in order to visualize the forces acting according to the pressures and the area of the pipe.

Then by means of the second law of motion of Newton, which says that the sum of the forces must be equal to the product of mass times acceleration, we can find the force Fp

Let us remember that pressure is defined as the divided force over the area, therefore:

F = P *A

where:

P = pressure

A = area

The product of the mass by acceleration, is equal to the product of the speed of the fluid by the mass flow, since we know the weight of the fluid we can find its mass flow.

$W_{flow}=230[N/s]\\W_{flow} =g*m_{flow}\\m_{flow} = W_{flow} / g\\m_{flow} = 230/9.81\\m_{flow}= 23.45[kg/s]$

In the function of the mass flow, we can find the velocity of the fluid, as we also know the diameter of the pipe

$m_{flow} = density*v*A\\where\\density = 1000[kg/m^{3}]\\ v= velocity[m/s]\\A = area [m^{2}]\\v=\frac{m_{flow}}{density*A} \\v=\frac{23.45}{1000*\frac{\pi}{4}*(5*10^{-2})^{2} } \\v= 11.94 [m/s]$

We know that the atmospheric pressure is equal to:

$P_{atm} = 101.325[kpa]$

The value of the pipe area is calculated for a circular section

$A = \frac{\pi}{4} * (0.05)^{2}\\ A = 0.00196[m^{2} ]$

The resultant force is 749 [N]

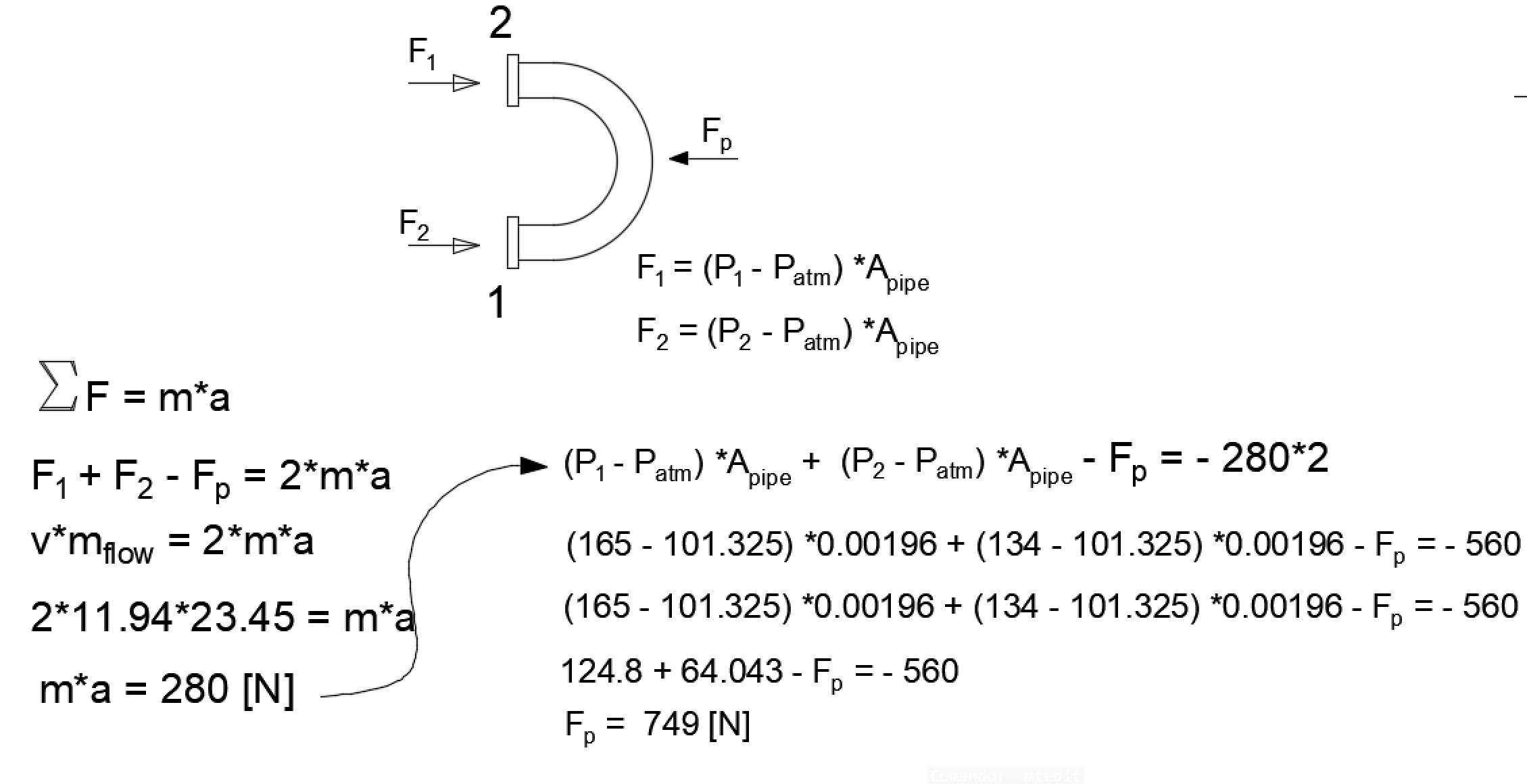

The solution of the equations and the free body diagram can be seen in the attached picture.

3 0

3 years ago

(10%) Problem 2: The frequency range for AM radio is 540 to 1600 kHz. The frequency range for FM radio is 88.0 to 108 MHz.

Dominik [7]

188m - 556m is the wavelength range for AM radio.

2.77 - 3.40m is the wavelength range for FM radio.

1) For AM radio

f(max) = 1600 × 10³ Hz

f(min) = 540 ×10³Hz

c = fλ

λ = c/f where,

c = speed of light

f = frequency

λ= wavelength

So,

λ(min) = 3 × $10^{8}$ / 1600 × 10³ = 188 m

λ(max) = 3 × 10⁸/540 ×10³ = 556 m

So wavelength range of AM radio is 188 m - 556m

2) For FM radio

f(max) = 108 × 10⁶ Hz

f(min) = 88 × 10⁶ Hz

λ(min) = 3 × 10⁸ / 108 × 10⁶ = 2.77 m

λ(max) = 3 × 10⁸ / 88 × 10⁶ = 3.40 m

So wavelength range of FM radio is 2.77m - 3.40m

Learn more about frequency here brainly.com/question/10728818

#SPJ1

3 0

2 years ago

Which is the correct option?

iris [78.8K]

Answer:

B

Explanation:

Bescouse a neutron is a robot and a fission is not

7 0

4 years ago

Do you think climate change is affecting our seasons? Why or why not? Share the links you found that support your theory.

mestny [16]

Answer:

Yes, it is. The summers and the winters are getting warmer. Also in cold places like Alaska, the temperatures are rising.

Explanation:

6 0

4 years ago
