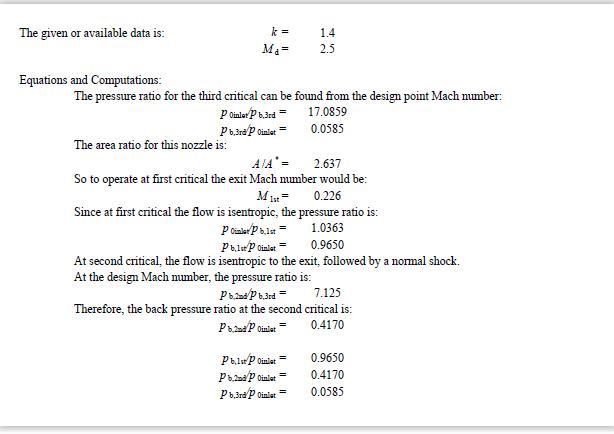

A converging–diverging nozzle is designed to produce a Mach number of 2.5 with air. (a) What operating pressure ratio (prec/pt i
nlet) will cause this nozzle to operate at the first, second, and third critical points? (b) If the inlet stagnation pressure is 150 psia, what receiver pressures represent operation at these critical points? (c) Suppose that the receiver pressure were fixed at 15 psia. What inlet pressures are necessary to cause operation at the critical points?
1 answer:
You might be interested in
Answer:
a) 149 kJ/mol, b) 6.11*10^-11 m^2/s ,c) 2.76*10^-16 m^2/s
Explanation:
Diffusion is governed by Arrhenius equation
I will be using R in the equation instead of k_b as the problem asks for molar activation energy
I will be using
and
°C + 273 = K
here, adjust your precision as neccessary
Since we got 2 difusion coefficients at 2 temperatures alredy, we can simply turn these into 2 linear equations to solve for a) and b) simply by taking logarithm
So:
and
You might notice that these equations have the form of
You can solve this equation system easily using calculator, and you will eventually get
After you got those 2 parameters, the rest is easy, you can just plug them all including the given temperature of 1180°C into the Arrhenius equation
And you should get D = 2.76*10^-16 m^/s as an answer for c)
