Answer:
The solution code is written in Python.
- def largest3(num1, num2, num3):
- largest = num1
- if(largest < num2):
- largest = num2
-
- if(largest < num3):
- largest = num3
-
- return largest
- first_num = int(input("Enter first number: "))
- second_num = int(input("Enter second number: "))
- third_num = int(input("Enter third number: "))
- largest_number = largest3(first_num, second_num, third_num)
- print("The largest number is " + str(largest_number))
Explanation:
<u>Create function largest3</u>
- Firstly, we can create a function <em>largest3 </em>which take 3 numbers (<em>num1, num2, num3</em>) as input. (Line 1).
- Please note Python uses keyword <em>def </em>to denote a function. The code from Line 2 - 10 are function body of <em>largest3</em>.
- Within the function body, create a variable,<em> largest</em>, to store the largest number. In the first beginning, just tentatively assign<em> num1 </em>to<em> largest</em>. (Line 2)
- Next, proceed to check if the current "<em>largest</em>" value smaller than the<em> num2 </em>(Line 4). If so, replace the original value of largest variable with <em>num2</em> (Line 5).
- Repeat the similar comparison procedure to<em> </em><em>num3</em> (Line 7-8)
- At the end, return the final value of "<em>largest</em>" as output
<u>Get User Input</u>
- Prompt use input for three numbers (Line 13 -15) using Python built-in <em>input</em> function.
- Please note the input parts of codes is done outside of the function <em>largest3</em>.
<u>Call function to get largest number and display</u>
- We can simply call the function<em> largest </em>by writing the function name <em>largest</em> and passing the three user input into the parenthesis as arguments. (Line 17)
- The function <em>largest </em>will operate on the three arguments and return the output to the variable <em>largest_number</em>.
- Lastly, print the output using Python built-in <em>print</em> function. (Line 18)
- Please note the output parts of codes is also done outside of the function<em> largest3</em>.
Answer: Um, a little feedback would help, cause I'm new but if you are thanking someone, let me know and i'll thank them for you, any other questions?
Explanation:
Answer:
Attached below
Explanation:

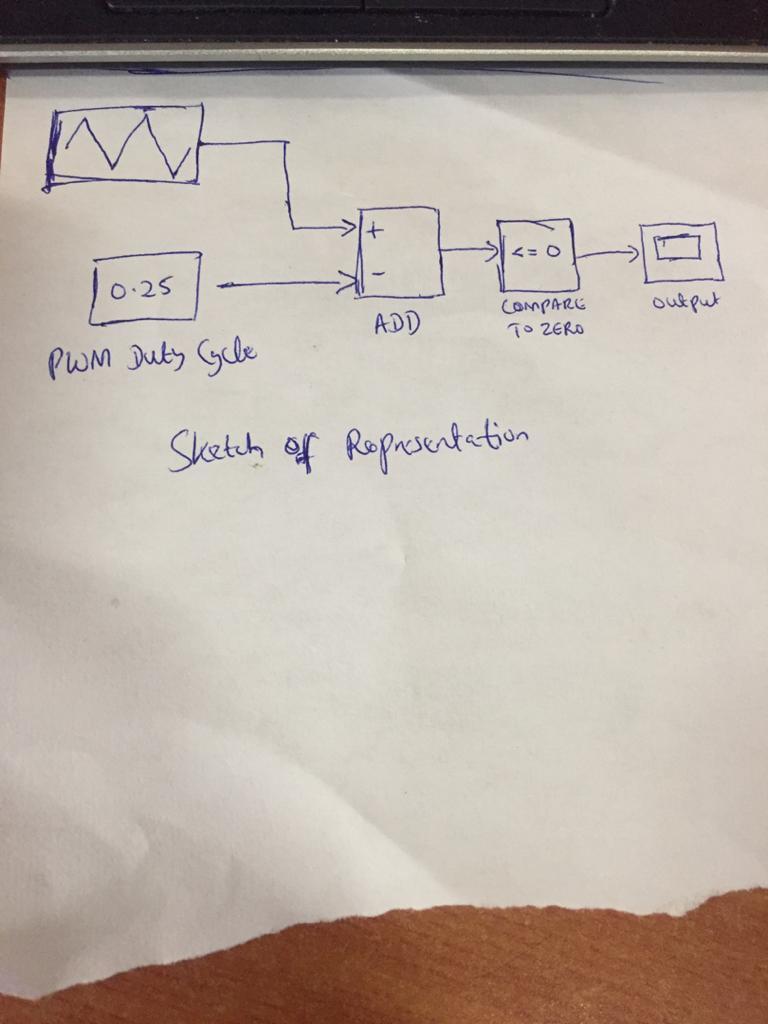

PWM signal source has 1 KHz base frequency
Analog filter : with time constant = 0.01 s
low pass transfer function =
PWM duty cycle is a constant block
Attached below is the design and simulation into Simulink at 25% , 50% and 100% respectively
Answer: The complete part of the question is to find the exit velocity
Explanation:
Given the following parameters
Inlet pressure = 700kpa
outlet pressure = 40kpa
Temperature = 80°C = 353k
mass flow rate = 1 kg/s
The application of the continuity and the bernoulli's equation is employed to solve the problem.
The detailed steps and the appropriate formula is as shown in the attached file.
Before installing head gaskets, you should look for "this side up" or "front" labels on the head gaskets.
<h3>What is a
head gasket?</h3>
A head gasket can be defined as a gasket which is fitted between the engine block and the cylinder head in an internal combustion engine, so as to seal oil passages and absorb the pressures of the combustion that occurs inside the engine.
As a general rule, you should look for "this side up" or "front" labels on the head gaskets before installing head gaskets in an internal combustion engine of a vehicle.
Read more on head gaskets here: brainly.com/question/1264437
#SPJ1
