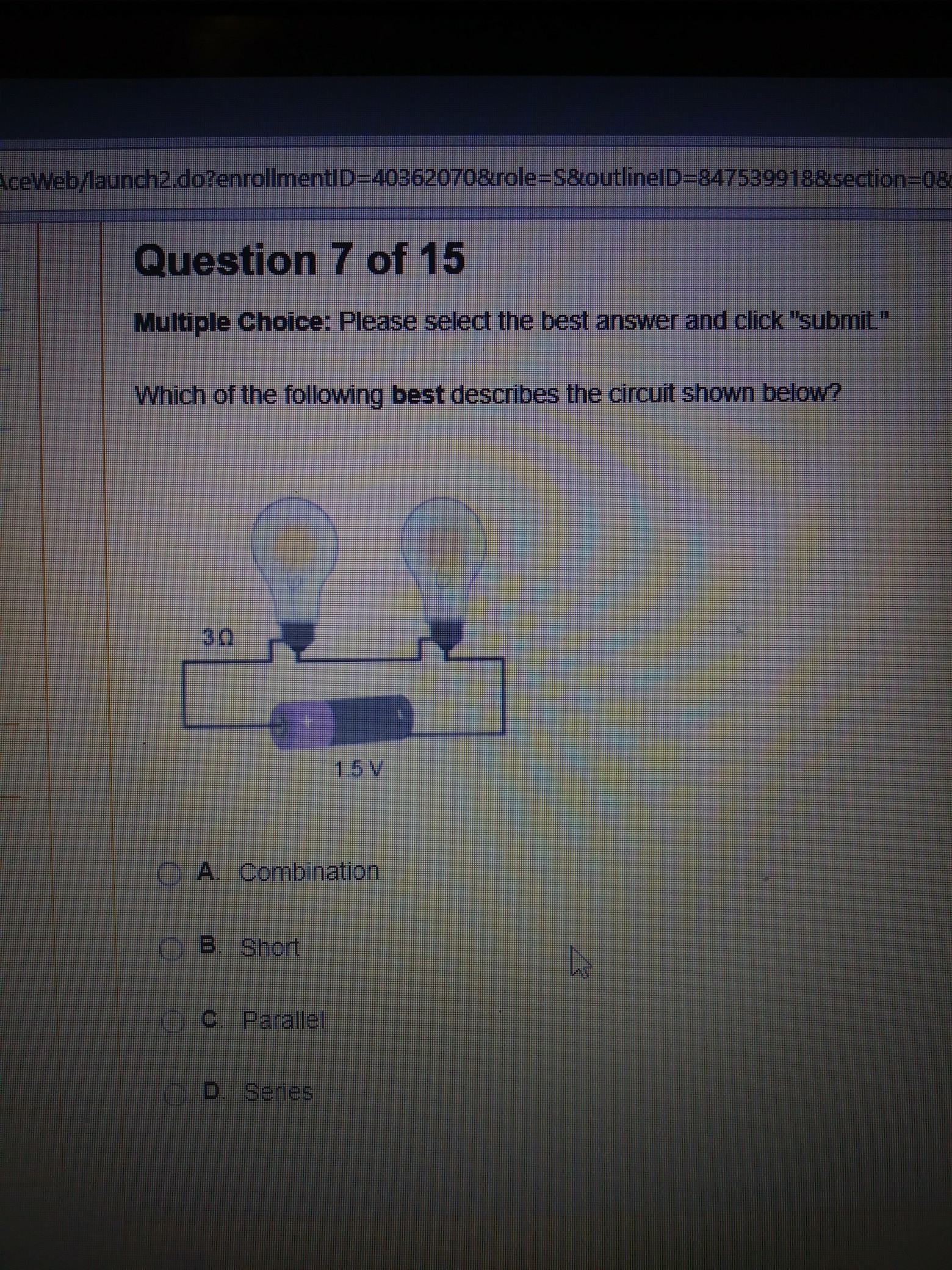

Which of the following best describes the circuit shown below

Physics

2 answers:

stiv31 [10]4 years ago

7 0

Answer:

series circuit

Explanation:

Gnom [1K]4 years ago

6 0

The circuit shown is a series circuit. A series circuit is a circuit with more than one resistor where electricity flows in a single path.

A parallel circuit on the other hand, electricity flows through more than one path. A combination type of circuit, is a circuit that has both parallel and series circuits. Short circuit happens when there is no load.

The answer to your question again is series.

You might be interested in

4. An airplane maintains a constant acceleration of 4.0 m/s2 [E] as it speeds up from 16 m/s [E] to 28 m/s [E].

ki77a [65]

Answer:

gyvtu jyut

Explanation:

6 0

3 years ago

Faraday's Law states that the negative of the time rate of change of the flux of the magnetic field through a surface is equal t

MrRa [10]

Answer:

(C). The line integral of the magnetic field around a closed loop

Explanation:

Faraday's law states that induced emf is directly proportional to the time rate of change of magnetic flux.

This can be written mathematically as;

$EMF = -\frac{\delta \phi _B}{\delta t}$

$(\frac{\delta \phi _B}{\delta t} )$ is the rate of change of the magnetic flux through a surface bounded by the loop.

ΔФ = BA

where;

ΔФ is change in flux

B is the magnetic field

A is the area of the loop

Thus, according to Faraday's law of electric generators

∫BdL = $\frac{\delta \phi _B}{\delta t}$ = EMF

Therefore, the line integral of the magnetic field around a closed loop is equal to the negative of the rate of change of the magnetic flux through the area enclosed by the loop.

The correct option is "C"

(C). The line integral of the magnetic field around a closed loop

8 0

4 years ago

Two blocks are connected by a massless cable which goes through the center of a rotating turntable. The blocks have masses M1 =

Airida [17]

Answer:

If the final question is; at what velocity will the first block start to move outward in m/s?

$v = 3.5596 \frac{m}{s}$

Explanation:

The motion have the velocity that will make the block move using:

$F_{1}*F_{r}+ F_{2}= Ec \\Ec= \frac{M*v^{2} }{r}$

$m_{1} = 1.2 Kg$

$m_{2} = 2.8 Kg$

$r = 0,45 m$

μ $s= 0,54$

Resolving:

$\frac{m_{1}*v^{2} }{r} = us*m_{1}* g + m_{2} * g$

$v^{2} = \frac{((us *m_{1} + m_{2})*g )* r}{m_{1} }$

$v^{2} = \frac{((0.54 *1.2 + 2.8)*9.8 )* 0.45}{1.2}$

$v^{2} = 12.6714 \frac{m^{2} }{s^{2} }$

$v = 3.559 \frac{m}{s}$

4 0

3 years ago

Is it true that at freezing point particle are vibrating so fast they break free?

kondor19780726 [428]

It is false. The effect of freezing is almost the exact opposite

4 0

4 years ago

Read 2 more answers

A spacecraft in the shape of a long cylinder has a length of 100 m, and its mass with occupants is 1 480 kg. It has strayed too

maks197457 [2]

Answer:

2352645198509.9604 m/s²

Explanation:

G = Gravitational constant = 6.67 × 10⁻¹¹ m³/kgs²

M = Mass of black hole = $90\times 1.989\times 10^{30}\ kg$

$R_{f}$ = 10000+100 m

$R_{sb}$ = Distance between the nose and the center of the black hole = 10000 m

The difference in the gravitational field in this system is given by

$\Delta F=\dfrac{GMm}{R_{f}^2}-\dfrac{GMm}{R_{sb}^2}\\\Rightarrow \Delta g=GM\left(\frac{1}{R_f^2}-\frac{1}{R_{sb}^2}\right)\\\Rightarrow g=6.67\times 10^{-11}\times 90\times 1.989\times 10^{30}\left(\frac{1}{(10000+100)^2}-\frac{1}{10000^2}\right)\\\Rightarrow \Delta g=-2352645198509.9604\ m/s^2$

The acceleration is 2352645198509.9604 m/s²
