Draw the electron dot structure for each of the molecules below

Chemistry

1 answer:

xxTIMURxx [149]3 years ago

8 0

Answer:

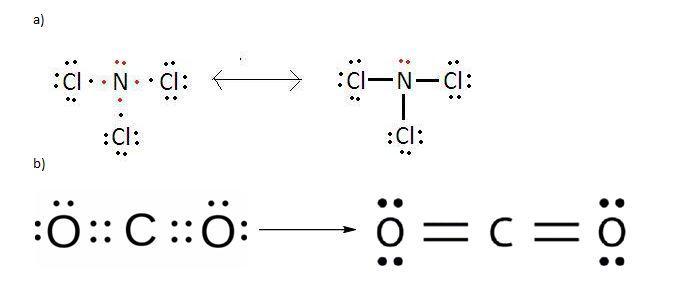

The structures are in attachment.

Explanation:

$NCl_{3}$

The given compound has one nitrogen atom and three chlorine atoms. To get the stable octet electronic configuration nitrogen acquire three electrons and three chlorine atom share one electron to the nitrogen atom.

$CO_{2}$

The given compound has one carbon atom and two oxygen atoms. To get the stable octet electronic configuration carbon acquire four electrons and two oxygen atoms are shared two electrons to the carbon atom.

$H_{2}S$

The given compound has one sulfur atom and two hydrogen atoms. To get the stable octet electronic configuration sulfur acquire two electrons and two hydrogen atoms shared two electrons to the sulfur atom.

$SO_{3}$

The given compound has one sulfur atom and three oxygen atoms. To get the stable octet electronic configuration sulfur acquire only two electrons and two oxygen atoms shared two electrons to the sulfur atom and remaining oxygen gets negative charge.

The structures are in attachment.

You might be interested in

A Geiger counter is used to measure

Fantom [35]

It detects ionizing radiation such as alpha particles, beta particles and gamma raysusing the ionization effect produced in a Geiger–Müller tube; which gives its name to the instrument.

7 0

3 years ago

How many calories are required to boil 75 grams of water not in sig figs

Norma-Jean [14]

Well, each ml of water requires one calorie to go up 1 degree Celsius, so this liter of water takes 1000 calories to go up 1 degree Celsius. (There are 1000 ml, each of which needs to have its temperature raised.)

3 0

3 years ago

Explain why a steel object continues to rust even after its outer layers have corroded.

Aliun [14]

Answer:

Explanation:

During that process of being exposed to air and water while being left outside or in the elements for an extended period of time, a variety of different types of rusts can form, but the most common form is Fe2O3. Rust only forms on the outside of a metal surface because it requires exposure of oxygen and water to rust.

7 0

3 years ago

Pentaborane-9, B5H9, is a colorless, highly reactive liquid that will burst into flame when exposed to oxygen. The reaction is 2

mina [271]

Answer: The amount of energy released per gram of $B_5H_9$ is -71.92 kJ

Explanation:

For the given chemical reaction:

$2B_5H_9(l)+12O_2(g)\rightarrow 5B_2O_3(s)+9H_2O(l)$

The equation used to calculate enthalpy change is of a reaction is:

$\Delta H^o_{rxn}=\sum [n\times \Delta H^o_f_{(product)}]-\sum [n\times \Delta H^o_f_{(reactant)}]$

The equation for the enthalpy change of the above reaction is:

$\Delta H^o_{rxn}=[(5\times \Delta H^o_f_{(B_2O_3(s))})+(9\times \Delta H^o_f_{(H_2O(l))})]-[(2\times \Delta H^o_f_{(B_5H_9(l))})+(12\times \Delta H^o_f_{(O_2(g))})]$

Taking the standard enthalpy of formation:

$\Delta H^o_f_{(B_2O_3(s))}=-1271.94kJ/mol\\\Delta H^o_f_{(H_2O(l))}=-285.83kJ/mol\\\Delta H^o_f_{(B_5H_9(l))}=73.2kJ/mol\\\Delta H^o_f_{(O_2(g))}=0kJ/mol$

Putting values in above equation, we get:

$\Delta H^o_{rxn}=[(5\times (1271.94))+(9\times (-285.83))]-[(2\times (73.2))+(12\times (0))]\\\\\Delta H^o_{rxn}=-9078.57kJ$

We know that:

Molar mass of pentaborane -9 = 63.12 g/mol

By Stoichiometry of the reaction:

If 2 moles of $B_5H_9$ produces -9078.57 kJ of energy.

Or,

If $(2\times 63.12)g$ of $B_5H_9$ produces -9078.57 kJ of energy

Then, 1 gram of $B_5H_9$ will produce = $\frac{-9078.57kJ}{(2\times 63.12)}\times 1g=-71.92kJ$ of energy.

Hence, the amount of energy released per gram of $B_5H_9$ is -71.92 kJ

8 0

3 years ago

List science of kinesiology that interest you? Why there science interest you

Mkey [24]

Answer:

The study of the human body as a machine for the performance of work has its foundations in three major areas of study—namely, mechanics, anatomy, and physiology; more specifically, biomechanics, musculoskeletal anatomy, and neuromuscular physiology. Explanation:

5 0

3 years ago
