Question

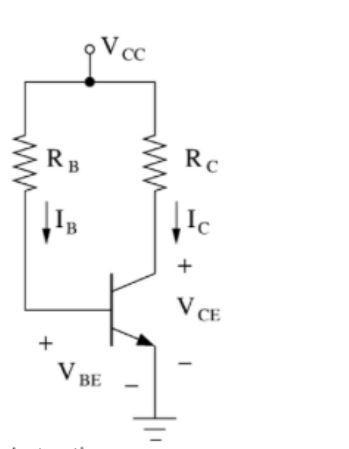

Find R subscript C and R subscript B in the following circuit such that BJT would be in the active region with V subscript C E end subscript equals 5 V and I subscript C equals 25 m A V subscript C C end subscript equals 15 space V comma space V subscript D 0 end subscript equals 0.7 space V comma space beta equals 100 comma space V subscript A equals infinity.. Ignore the early effect in biasing calculations.

Answer 1

Answer: Rc = 400 Ω and Rb = 57.2 kΩ

Explanation:

Given that;

VCE = 5V

VCC = 15 V

iC = 25 mA

β = 100

VD₀ = 0.7 V

taking a look at the image; at loop 1

-VCC + (i × Rc) + VCE = 0

we substitute

-15 + ( 25 × Rc) + 5 = 0

25Rc = 10

Rc = 10 / 25

Rc = 0.4 k

Rc = 0.4 × 1000

Rc = 400 Ω

iC = βib

25mA = 100(ib)

ib = 25 mA / 100

ib = 0.25 mA

ib = 0.25 × 1000

ib = 250 μAmp

Now at Loop 2

-Vcc + (ib×Rb) + VD₀ = 0

-15 (250 × Rb) + 0.7 = 0

250Rb = 15 - 0.7

250Rb = 14.3

Rb = 14.3 / 250

Rb = 0.0572 μ

Rb = 0.0572 × 1000

Rb = 57.2 kΩ

Therefore Rc = 400 Ω and Rb = 57.2 kΩ
