Answer:
C. 3.0
Explanation:
Bond order is number of the bonding pairs of the electrons between two atoms.
For
,
The total number of the valence electrons = 2(4) + 1(5) + 3(1) = 16
The Lewis structure is drawn in such a way that the octet of each atom and duet for the hydrogen in the molecule is complete. So,
The Lewis structure is:
H
:
H : C : C : : : N :
:
H
Bond pairs between C and N is 3
<u>So bond pair is 3.</u>
Answer:
2,3-dimethylheptane.
CH₃ - CH - CH-CH₂-CH₂-CH₂-CH₂
| |
CH₃ CH₃
Explanation:
Hello there!
In this case, according to the given instructions, it is possible to draw the organic chemical structure by connecting seven carbon atoms along the parent chain with two methyl substituents at the second and third carbon atoms; thus, the resulting structure is:
CH₃ - CH - CH-CH₂-CH₂-CH₂-CH₂
| |
CH₃ CH₃
Furthermore, the name would be 2,3-dimethylheptane according to the IUPAC rules for nomenclature.
Best regards!
H. Hydrogen
He. Helium
Li. Lithium
Be. Beryllium
B. Boron
C. Carbon
N. Nitrogen
O. Oxygen
F. Fluorine
N. Neon
Answer: There are 4 bonding electrons and 18 non-bonding electrons.
Explanation: To determine the number of bonding and non-bonding electrons, we will use lewis dot structure for the molecule
Lewis dot structure is the structure in which the valence electrons around an atom is shown in a molecule. It also tells us about the number of bonds present between the two neighboring atoms.
Valence electrons of Fluorine = 7
Valence electrons of Xenon = 8
In
Total number of valence electrons = [(1 × 8) + (2 × 7)] = 22 electrons

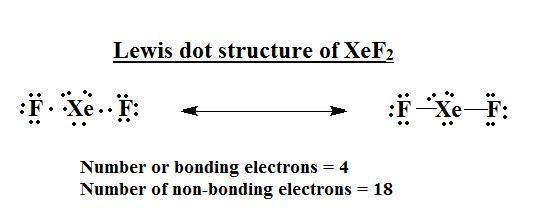

From, the structure attached below, the number of bonds present = 2. Hence, the bonding electrons will be = 4 electrons
- Number of non - bonding electrons = Total valence electrons - Number of bonding electrons
Number of non-bonding electrons = 22 - 4 = 18
A way to explain it is that back then all the continents were together but soon after drifted apart the were in the same place sort of put they drifted apart so that's sorta what happened. Hope that helps a little
