Question

The force of T = 20 N is applied to the cord of negligible mass. Determine the angular velocity of the 20-kg wheel when it has rotated 4 revolutions starting from rest. The wheel has a radius of gyration of kO = 0.3 m.

Answer 1

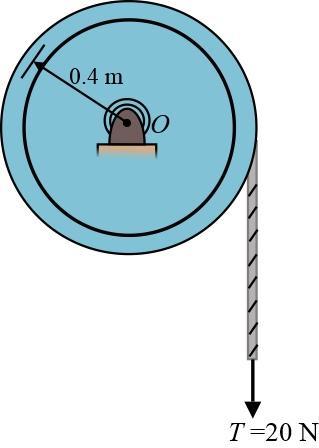

Image of wheel is missing, so i attached it.

Answer:

ω = 14.95 rad/s

Explanation:

We are given;

Mass of wheel; m = 20kg

T = 20 N

k_o = 0.3 m

Since the wheel starts from rest, T1 = 0.

The mass moment of inertia of the wheel about point O is;

I_o = m(k_o)²

I_o = 20 * (0.3)²

I_o = 1.8 kg.m²

So, T2 = ½•I_o•ω²

T2 = ½ × 1.8 × ω²

T2 = 0.9ω²

Looking at the image of the wheel, it's clear that only T does the work.

Thus, distance is;

s_t = θr

Since 4 revolutions,

s_t = 4(2π) × 0.4

s_t = 3.2π

So, Energy expended = Force x Distance

Wt = T x s_t = 20 × 3.2π = 64π J

Using principle of work-energy, we have;

T1 + W = T2

Plugging in the relevant values, we have;

0 + 64π = 0.9ω²

0.9ω² = 64π

ω² = 64π/0.9

ω = √64π/0.9

ω = 14.95 rad/s
