Question

if a 1-m diameter sewer pipe is flowing at a depth of 0.4 m and has a flow rate of 0.15 m^3/s, what will be the flow rate when the pipe flows full?

Answer 1

Answer:

0.35 m³/s

Explanation:

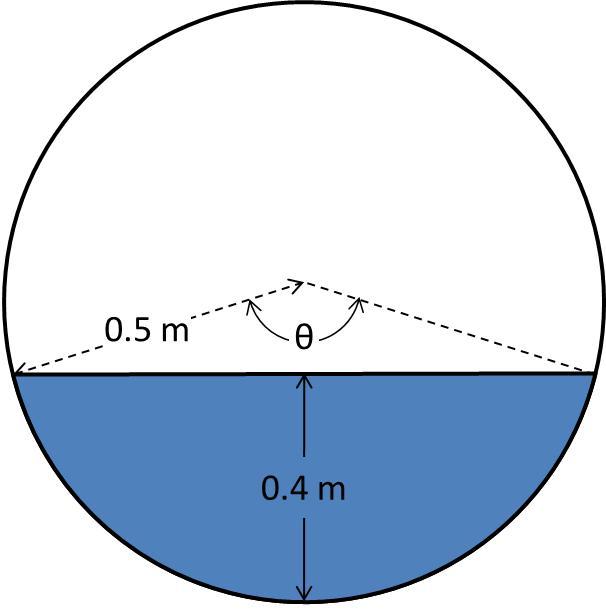

When the pipe's depth is 0.4 m, the area of the circular segment is:

A = ½ R² (θ − sin θ)

The depth of the water is:

h = R (1 − cos(θ/2))

Solving for θ:

0.4 = 0.5 (1 − cos(θ/2))

0.8 = 1 − cos(θ/2)

cos(θ/2) = 0.2

θ/2 = acos(0.2)

θ = 2 acos(0.2)

θ ≈ 2.74 rad

The area is therefore:

A = ½ (0.5 m)² (2.74 − sin 2.74)

A = 0.338 m²

The cross-sectional area when the pipe is full is:

A = π (0.5 m)²

A = 0.785 m²

The flow velocity is constant:

v = v

Q / A = Q / A

(0.15 m³/s) / (0.338 m²) = Q / (0.785 m²)

Q = 0.35 m³/s
