-Dominant- [34]
3 years ago
8

Consider a venture with a small hole drilled in the side of the throat. This hole is connected via a tube to a closed reservoir.

The purpose of the venture is to create vacuum in the reservoir when the venture is placed in an airstream. (The vacuum is defined as the pressure difference below the outside ambient pressure.) The venture has a throat to inlet area ratio of 0.85. Calculate the maximum vacuum obtainable in the reservoir when the venturi is placed in an airstream of 90 m/s at standard sea level conditions.

Engineering
1 answer:
dangina [55]3 years ago
3 0

Answer:

1913meter per second square.

Explanation:

From the Context the vacuum can be said be the presence of 5e difference below the outside ambient temperature.

For the Venturi.

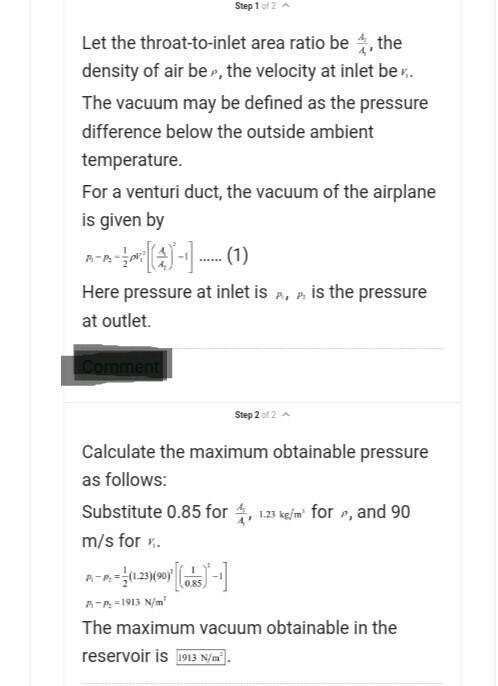

Please go through the attached file for the rest of the solutions and the answer.
