levacccp [35]
3 years ago
5

A double threaded Acme stub screw of 2-inch major diameter is used in a jack having a plain thrust collar of 2.5

Engineering
1 answer:
krek1111 [17]3 years ago
5 0

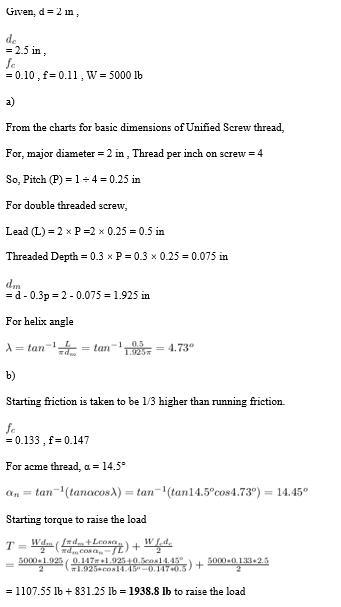

Answer:

a) 4.73°

b) 1938.8 lb to raise the load , 1159.8 lb to lower the load

c) Efficiency = 25.25%

d) screw is self locking and not overhauling

Explanation:
